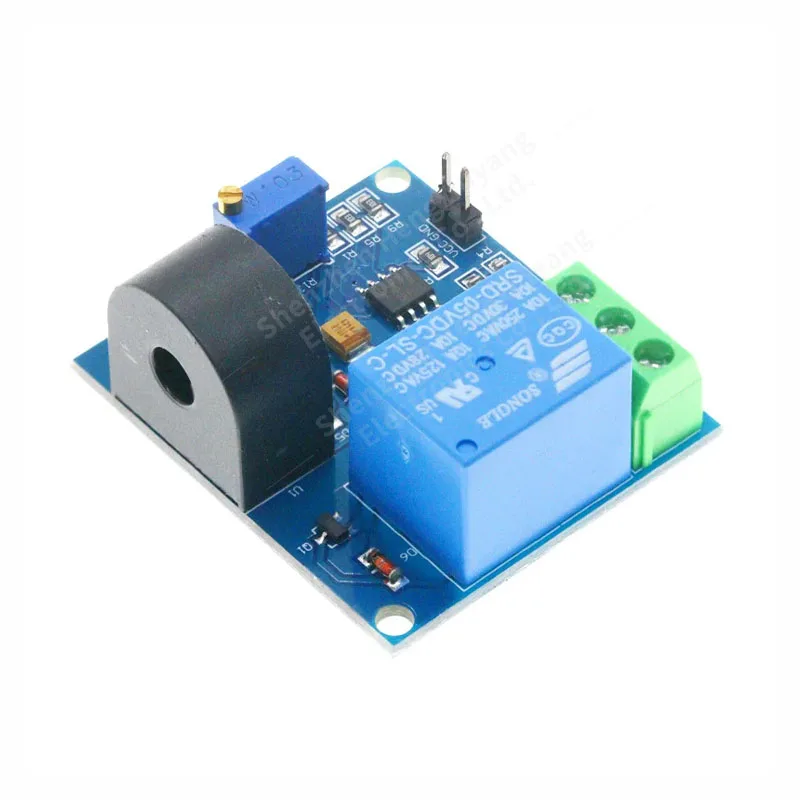

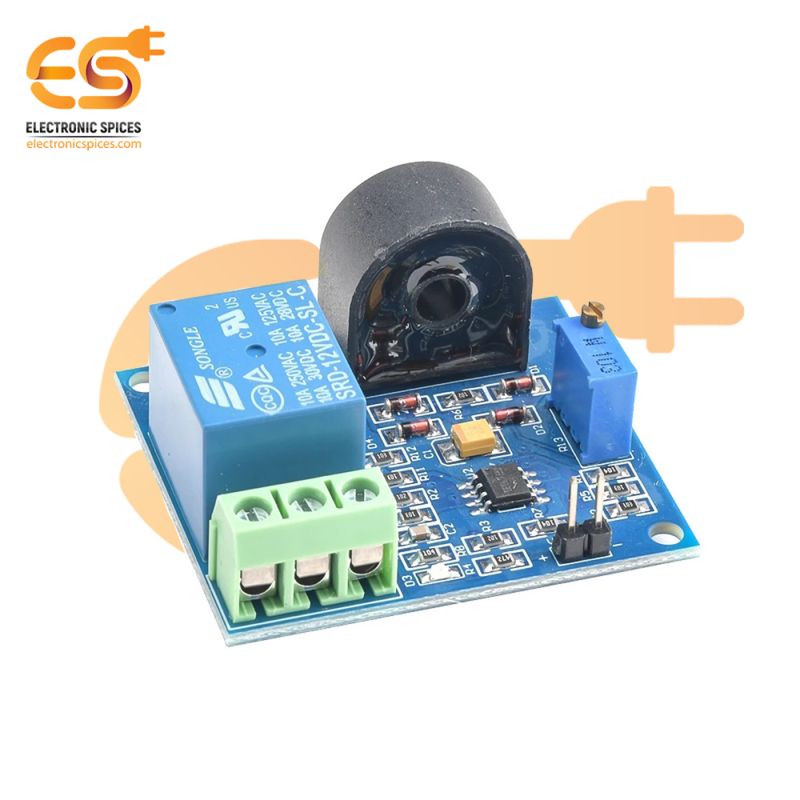

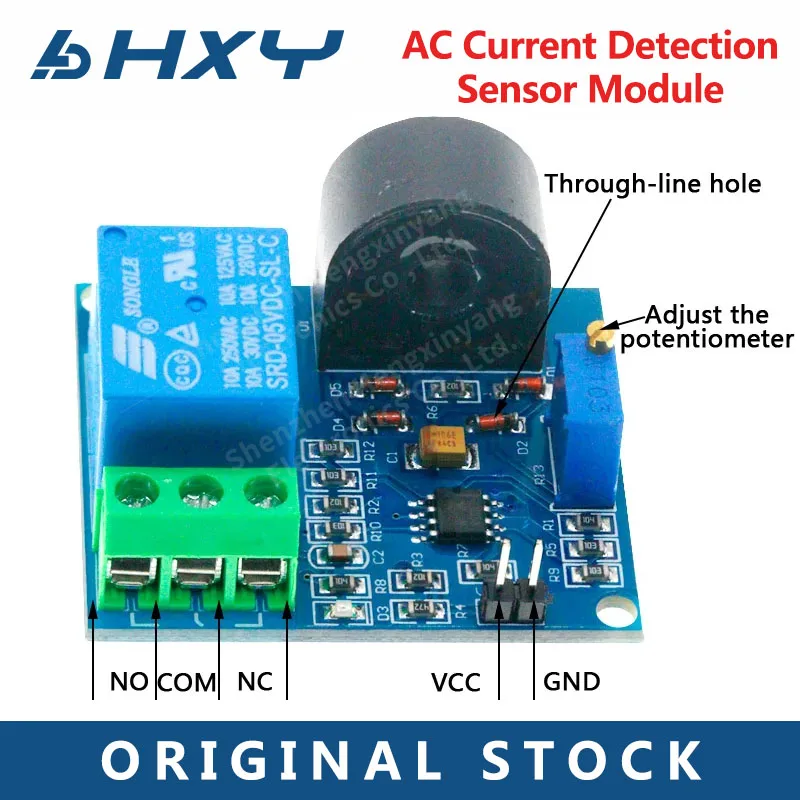

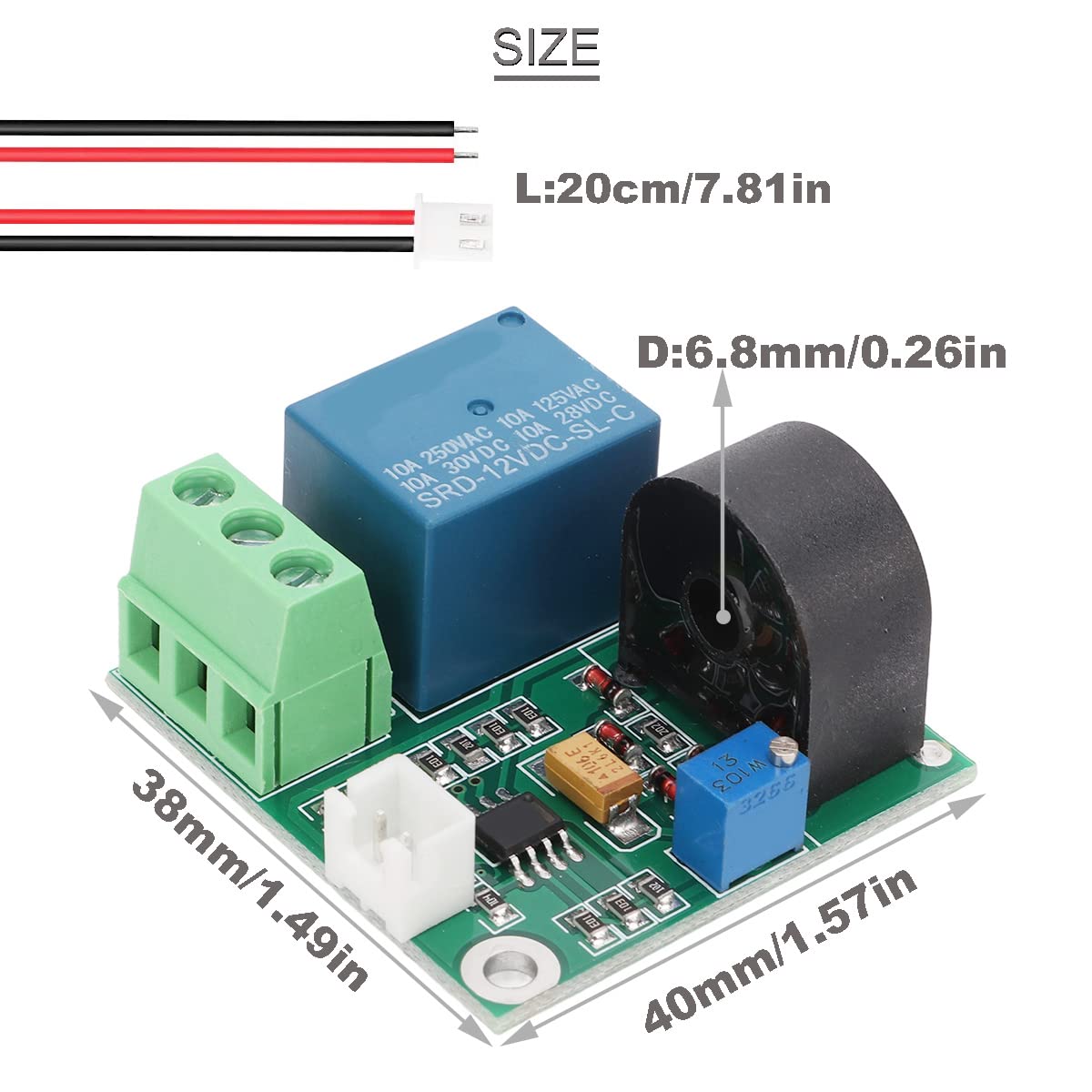

【Features】: Current detection resolution can change the parameter of resistance;Output over-current switching signal output;Over-current signal setting critical point is adjustable. Overcurrent Protection: Automatically disconnects the load if the current exceeds a predefined threshold. 【Board Description】:VCC: Operating voltage positive;GND :Operating voltage negative;NO: Normally open, the relay pulls before the NO and COM disconnect, short-circuit after the suction;COM: common, relay common interface;NC: Normally closed, the relay before the NC and COM short-circuit, after pull off. AC Current Detection Sensor, Switch & Analog Output 【Parameter】: Operating voltage: DC 12V;Working current: less than 10mA;Current detection range: AC 0., 3A-5A(Potentiometer is adjustable);Maximum detection wire diameter: 5., 2mm. Power Supply Units: Can be integrated into power supplies for overcurrent protection and safety shutdown. Technical Specifications: Model: 5A AC Current Detection Module Input Voltage: 12V DC Current Detection Range: 0-5A AC Overcurrent Protection: Yes, with adjustable threshold Output Type: Relay output Operating Temperature: -40°C to +85°C Dimensions: Compact, PCB-based design Mechanical Specifications: Mounting Type: PCB-mount Pin Count: Multiple connectors for power input, current sensing, and relay output Compact Size: Ideal for integration into existing circuits Schematic Diagram, Connection, Wiring, and Pinout: Pin Configuration: 1: VCC - Power input (12V DC) 2: GND - Ground 3: IN - Current sensing input 4: OUT - Relay output for controlling external devices Applications: Overcurrent Protection: Used in AC circuits to prevent damage to devices by disconnecting them during overcurrent conditions. About This Product. Features: Non-invasive current transformer Suitable for lighting equipment, AC motors, air compressors, monitoring, current measurement... The overcurrent signal setting is adjustable and the resolution is set to 0., 3A. Buy 5A 12V Overcurrent Protection AC Current Detection Sensor Module online at lowest price in India with best quality only on . Keywords: Overcurrent Protection AC Current Detection Relay Output 5A Current Sensing Adjustable Threshold Package Includes: 1 x DC 12V 5A Overcurrent Protection Sensor Module AC Current Detection Relay Module Switch Output 【Application】: Intelligent trolley motor over-current detection, motor stall protection current detection, short-circuit protection detection, etc. 24v Relay 5V 12V 24V 0-5A AC Current Detection Sensor Module 5A Switch Output Sensor Module I3694613644 Relay Module Industrial Control Systems: Suitable for use in automation and control systems where current monitoring is essential. AC Current Sensor 5V Relay Module High Precision Current ZMCT103C 【What it does】: The current detection sensor mainly detects and prevents the equipment from overcurrent by setting the overcurrent point, so as to protect your equipment and avoid equipment damage.
